Option & Equipment
Antenna fixed mast
Assist steps
Bumper front Black
Door handles Black
Front fender extension mold-in-color Black (Not available with (FNP) Body color front fender extension.)
Glass solar absorbing tinted
Grille guard screen insect protection (mounted behind grille)
Grille base molded in color Black
Headlamps halogen projector-beam
Lamps cargo area cab mounted with switch on center switch bank
Lamps rear stop/turn/backup (1-piece assembly) with license plate light
Lamps Smoked Amber roof marker
Mirrors outside high-visibility vertical camper-style Black with manual folding and extension and lower convex spotter glass
Spare tire delete
Tires front 225/70R19.5G highway blackwall Goodyear Max Axle Load: 7940 lb. (Requires (YAL) Tires rear 225/70R19.5G highway blackwall Goodyear Max Axle Load: 15000 lb. or (YMF) Tires rear 225/70R19.5G traction blackwall Goodyear Max Axle Load: 15000 lb.)
Tires rear 225/70R19.5G highway blackwall Goodyear Max Axle Load: 15000 lb.
Wheel spare delete
Wheels 19.5" x 6.75" steel Black painted 8-holes hub piloted
Air conditioning single-zone
Assist handle front passenger and driver on A-pillars
Audio system feature 4-speaker system
Audio system 4.2" diagonal color display AM/FM stereo with USB port and auxiliary jack (Requires (AE7) front 40/20/40 split-bench seat. Not available with (UE1) OnStar or (U2K) SiriusXM Radio.)
Cruise control steering wheel-mounted
Door locks power
Driver Information Center 3.5-inch diagonal monochromatic display provides warning messages and basic vehicle information
Floor covering Graphite-colored rubberized-vinyl
Interior trim Jet Black/Dark Ash (Required and only available with (H2Q/H2R) Dark Ash seats with Jet Black interior accents.)
Mirror inside rearview manual day/night
Seat Belt Black

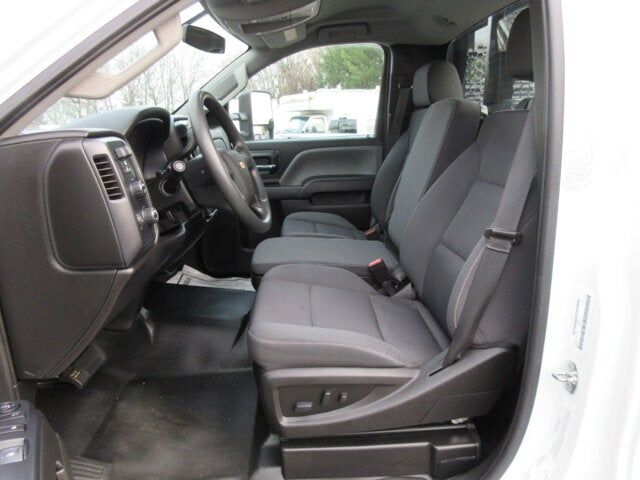

Seats front 40/20/40 split-bench 3-passenger driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar.
SiriusXM delete
Speedometer miles/kilometers
Steering column manual Tilt-Wheel
Steering wheel urethane
Upfitter switch kit provides up to 4-30 amp circuits to facilitate installation of aftermarket electrical accessories located on the instrument panel
Visors driver and front passenger vinyl
Windows manual driver and front passenger
4500 HD Series (Included and only available with (C7Y) 14001 lb. GVWR (C5B) 15000 lb. GVWR (C7P) 16000 lb. GVWR or (C7R) 16500 lb. GVWR.)
Alternator 150 amps
Axle lubricant front synthetic oil EmGard FE-75W-90
Axle lubricant rear synthetic oil EmGard FE -75W-90
Axle to End of Frame 49" (Requires wheelbase (ED5) 201" (ED9) 165" or (ER2) 189". Not available with (G40) (GP1) or (GP8) rear air suspension.)
Axle Open rear axle non-locking rear
Batteries heavy-duty dual 1100 cold-cranking amps includes battery box mounted to left side under cab
Brakes hydraulic heavy duty Bosch/Meritor/Wabco system with 4-channel (ABS) (Includes (J69) driveline park brake.)
Capped Fuel Fill
Emissions USA 50 State certified
Exhaust brake
Exhaust system rear exit
Four wheel drive
Front axle 7500 lb. Dana Spicer 60-256 single-reduction front driving
Front suspension 7500 lb. (3402 kg) multi-leaf includes shock absorbers
Fuel tank rear only 40 gallon mounted between frame side rails and behind rear axle
Fuel diesel B20
GVWR 16500 lb. (7484 kg) (Silverado 4500 HD 4WD models require one of the following combinations: (1) (FTB) 7.5k front axle and (FTV) 7.5k front suspension and (FN1) 10k rear axle or (GL4) 11k rear axle and (GR3) 11k rear suspension. (2) (FTB) 7.5k front axle and (FTV) 7.5k front suspension and (HD1) 15k rear axle or (J27) 15.5k rear axle and one of the following rear suspensions: (GR4) 13.5k rear suspension (FU7) 15.5k rear suspension (91B) 13.5k LiquidSpring prep single volume rear suspension (91C) 13.5k LiquidSpring prep stacked volume rear suspension (91D) 15.5k LiquidSpring prep single volume rear suspension or (91E) 15.5k LiquidSpring prep stacked volume rear suspension.)
Incomplete vehicle
Rear axle 11000 lb. (4999 kg) Dana Spicer S14-110 single reduction
Rear axle 4.30 ratio Max road speed: 75 MPH
Rear suspension 11000 (4990 kg) multi-leaf vari-rate
Steering power (Bosch S2 8014 Plus)
Wheelbase 165" (419.1 cm) 84" CA (Requires (F0C) 49" axle to end of frame (F0D) 63" axle to end of frame or (F0K) 91" axle to end of frame. Requires (PCJ) Vocational Specific Heavy Suspension Package when ordering (FTA) 7000 lb. Front axle/(FK6) 7000 lb. Front suspension or (FTL) 8000 lb. Front axle/(FSN) 8000 lb. Front suspension or (FU7) 15500 lb. rear suspension.)
Airbag deactivation switch frontal passenger-side (Included and only available with (AY0) airbags.)
Airbags Single-stage frontal airbags for driver and front outboard passenger; Seat-mounted side-impact airbags for driver and front outboard passenger; Head-curtain airbags for front outboard seating positions; Includes airbag deactivation switch for front outboard passenger airbag (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
Brake parking driveline park brake system
Daytime Running Lamps with automatic exterior lamp control
Electronic Stability Control System with Traction Control includes Electronic Trailer Sway Control and Hill Start Assist
Horn single-note
OnStar delete
Traction control
RUGGED DUTY SERVICE TRANSMISSION AUTOMATIC CLOSE-RATIO 6 SPD WITH DOUBLE OVERDRIVE ALLISON A2750RDS
ratios: 3.10 1ST
1.80 2ND
1.40 3RD
1.00 4TH
0.70 5TH
0.61 6TH Rugged Duty Series
includes park pawl
BATTERIES HEAVY-DUTY DUAL 1300 COLD-CRANKING AMPS
includes battery box mounted to left side under cab
(STD)
MIRRORS OUTSIDE HEATED POWER-ADJUSTABLE VERTICAL TRAILERING UPPER GLASS MANUAL-FOLDING AND EXTENDING BLACK.
Includes integrated turn signal indicators consisting of 51 square inch flat mirror surface positioned over a 24.5 square inch convex mirror surface with a common head and lower convex spotter glass (convex glass is not heated and not power adjustable) and addition of Auxiliary cargo lamp for backing up (helps to see trailer when backing up with a trailer) and amber auxiliary clearance lamp
TIRES REAR 225/70R19.5 H 130/128 L BW HWY CONTINENTAL
Max Axle Load: 15
500 lb.
POWER TAKE OFF ENGINE CONTROL PROVISIONS
Access is available on left-hand and right-hand side
WORK TRUCK PREFERRED EQUIPMENT GROUP
includes standard equipment
PROVISION FOR CAB ROOF-MOUNTED LAMP/BEACON
provides an overhead console mounted switch and electrical wiring tucked beneath the headliner for a body upfitter to connect a body-mounted warning or emergency lamp
ENGINE DURAMAX 6.6L TURBO-DIESEL V8 B20-DIESEL COMPATIBLE
350 hp @ 2700 rpm
700 lb.-ft. torque @ 1600 rpm (STD)
BATTERY TOP POST THREADED BATTERY JUMP START STUD
(located on battery box)
AUDIO SYSTEM 7" DIAGONAL COLOR TOUCH-SCREEN WITH CHEVROLET INFOTAINMENT
AM/FM stereo with seek-and-scan and digital clock
includes Bluetooth® streaming audio for music and select phones. (Includes (UQ3) 6-speaker audio system.
REAR AXLE 4.30 RATIO
Max road speed: 75 MPH
TIRES FRONT 225/70R19.5 H 130/128 L BW HWY CONTINENTAL
Max Axle Load: 8
000 lb.
SEATS FRONT 40/20/40 SPLIT-BENCH CLOTH OR VINYL 3-PASSENGER.
Includes driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Also includes manually adjustable driver lumbar and storage pockets. Includes (AG1) 10-way power seat.)
SNOW PLOW PREP PACKAGE
includes (UNL) auxiliary harness for headlamps and turn signals
(KW5) 220-amp alternator
forward lamp wiring harness and (TRW) provision for cab roof mounted lamp/beacon
DPF DIESEL PARTICULATE FILTER MANUAL REGENERATION
customer regeneration will not be allowed until the DPF load percentage has reached 100% full and a driver information center (DIC) message has been shown
REAR VISION CAMERA DISPLAY INTEGRATED INTO RADIO
(Shipped loose in cab for upfitter installation.)
RUGGED DUTY SERVICE TRANSMISSION AUTOMATIC CLOSE-RATIO 6 SPD WITH DOUBLE OVERDRIVE ALLISON A2750RDS ratios: 3.10 1ST 1.80 2ND 1.40 3RD 1.00 4TH 0.70 5TH 0.61 6TH Rugged Duty Series includes park pawl
BATTERIES HEAVY-DUTY DUAL 1300 COLD-CRANKING AMPS includes battery box mounted to left side under cab
WHEELS 19.5" X 6.75" STEEL BLACK PAINTED 8-HOLES HUB PILOTED (STD)
REAR SUSPENSION 15 500 LB. (7 031 KG) MULTI-LEAF VARI-RATE
MIRRORS OUTSIDE HEATED POWER-ADJUSTABLE VERTICAL TRAILERING UPPER GLASS MANUAL-FOLDING AND EXTENDING BLACK. Includes integrated turn signal indicators consisting of 51 square inch flat mirror surface positioned over a 24.5 square inch convex mirror surface with a common head and lower convex spotter glass (convex glass is not heated and not power adjustable) and addition of Auxiliary cargo lamp for backing up (helps to see trailer when backing up with a trailer) and amber auxiliary clearance lamp
SKID PLATE STEEL FRAME-MOUNTED PROTECTS THE TRANSFER CASE FROM THE GROUND
SUMMIT WHITE
DEFOGGER REAR-WINDOW ELECTRIC
34 000 LB. GCWR (15 422 KG)
TIRES REAR 225/70R19.5 H 130/128 L BW HWY CONTINENTAL Max Axle Load: 15 500 lb.
POWER TAKE OFF ENGINE CONTROL PROVISIONS Access is available on left-hand and right-hand side
TRAILER BRAKE CONTROLLER INTEGRATED
LICENSE PLATE KIT FRONT
FUEL TANK FRONT AND REAR 65 GALLON TOTAL
WORK TRUCK PREFERRED EQUIPMENT GROUP includes standard equipment
PROVISION FOR CAB ROOF-MOUNTED LAMP/BEACON provides an overhead console mounted switch and electrical wiring tucked beneath the headliner for a body upfitter to connect a body-mounted warning or emergency lamp
ENGINE DURAMAX 6.6L TURBO-DIESEL V8 B20-DIESEL COMPATIBLE 350 hp @ 2700 rpm 700 lb.-ft. torque @ 1600 rpm (STD)
6-SPEAKER AUDIO SYSTEM
BATTERY TOP POST THREADED BATTERY JUMP START STUD (located on battery box)
AUDIO SYSTEM 7" DIAGONAL COLOR TOUCH-SCREEN WITH CHEVROLET INFOTAINMENT AM/FM stereo with seek-and-scan and digital clock includes Bluetooth® streaming audio for music and select phones. (Includes (UQ3) 6-speaker audio system.
TRAILERING PROVISIONS TRAILERING WIRE HARNESS ONLY TRAILER COMBINED (STOP/TAIL/TURN) CONNECTION SOCKET AND HARNESS MOUNTED AT REAR OF FRAME.
WINDOWS POWER WITH DRIVER EXPRESS UP AND DOWN AND EXPRESS DOWN ON ALL OTHER WINDOWS
WHEELBASE 189" (480.1 CM) 108" CA
SPARE TIRE DELETE (STD)
ALTERNATOR 220 AMPS
TIRES FRONT 225/70R19.5 H 130/128 L BW HWY CONTINENTAL Max Axle Load: 8 000 lb.
AUXILIARY HARNESS 3' FOR HEADLAMPS AND TURN SIGNALS
HORN DUAL-NOTE
SEATS FRONT 40/20/40 SPLIT-BENCH CLOTH OR VINYL 3-PASSENGER. Includes driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Also includes manually adjustable driver lumbar and storage pockets. Includes (AG1) 10-way power seat.)
PAINT SOLID
SEAT ADJUSTER DRIVER 10-WAY POWER
6500 HD SERIES
SNOW PLOW PREP PACKAGE includes (UNL) auxiliary harness for headlamps and turn signals (KW5) 220-amp alternator forward lamp wiring harness and (TRW) provision for cab roof mounted lamp/beacon
RECOVERY HOOKS FRONT FRAME-MOUNTED BLACK
FRONT AXLE 7 500 LB. DANA SPICER 60-256 SINGLE-REDUCTION FRONT DRIVING
DPF DIESEL PARTICULATE FILTER MANUAL REGENERATION customer regeneration will not be allowed until the DPF load percentage has reached 100% full and a driver information center (DIC) message has been shown
AXLE LIMITED SLIP DANA SPICER TRUETRAC TORQUE PROPORTIONING LIMITED SLIP
REAR AXLE 15 500 LB. (7 031 KG) DANA SPICER S16-130 SINGLE REDUCTION
REAR VISION CAMERA DISPLAY INTEGRATED INTO RADIO (Shipped loose in cab for upfitter installation.)
JET BLACK CLOTH SEAT TRIM
GVWR 23 000 LB. (10 433 KG)
Turbocharged
Power Steering
ABS
Steel Wheels
Tires - Front All-Season
Tires - Rear All-Season
Running Boards/Side Steps
AM/FM Stereo
MP3 Capability
Auxiliary Audio Input
Split Bench Seat
Adjustable Steering Wheel
Power Door Locks
Cruise Control
A/C
Stability Control
Daytime Running Lights
Automatic Headlights
Driver Air Bag
Passenger Air Bag
Passenger Air Bag On/Off Switch
Front Side Air Bag
Front Head Air Bag
