Option & Equipment
Cab Mounts All steel low cab forward BBC 70.7 in. 45 deg. mechanical tilt with torsion assist
Daytime running lamps
Mirrors Dual cab mounted exterior with integral convex mirror
Paint Scheme Solid
Windows Tinted glass
Windshield Wipers Intermittent wet-arm
AM/FM/CD stereo radio
Cruise control
Floor mats

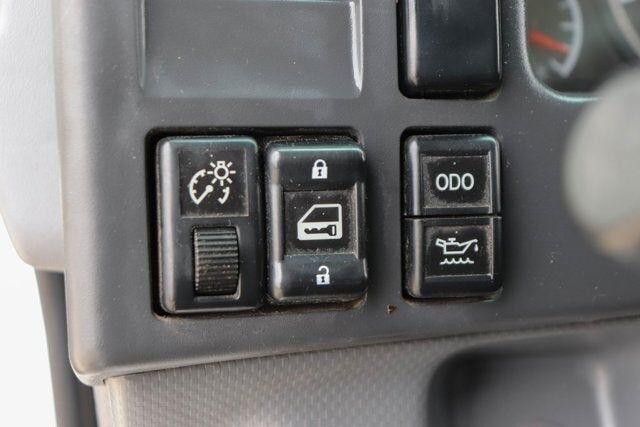

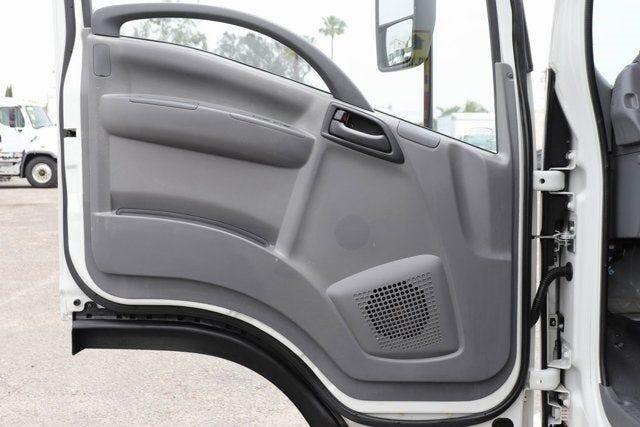

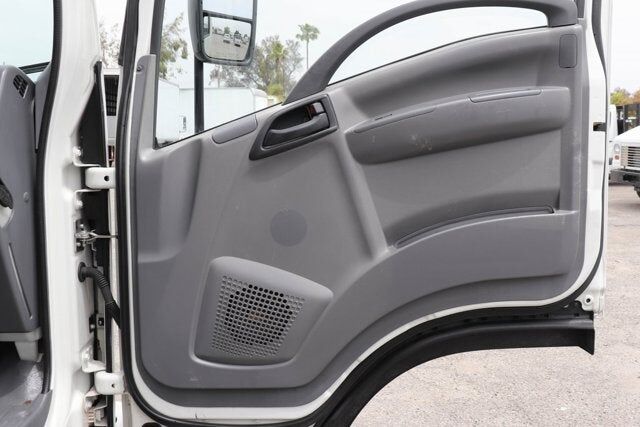

Power windows & door locks

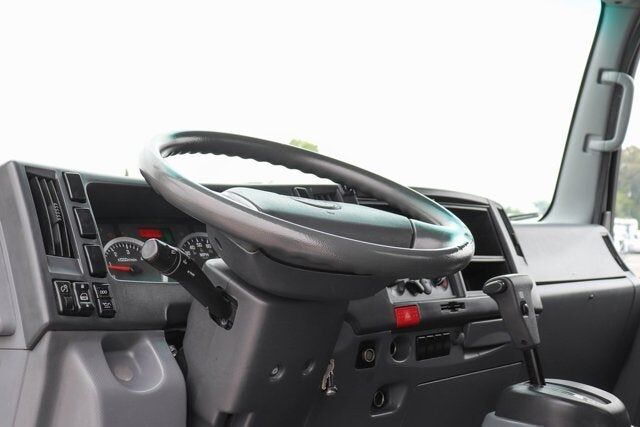

Tilt and telescoping steering column

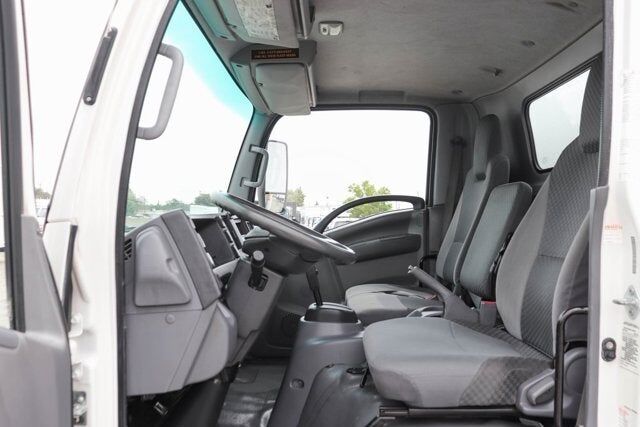

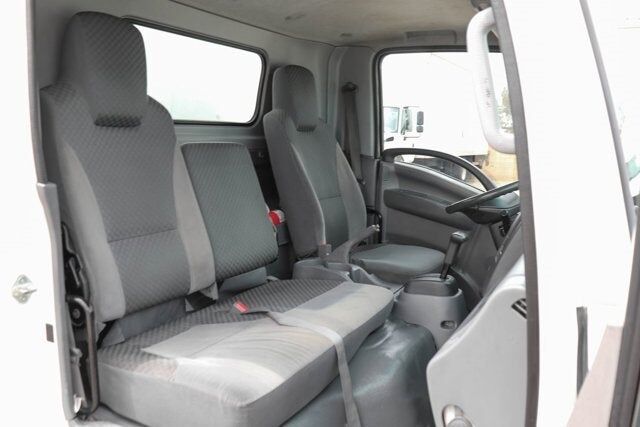

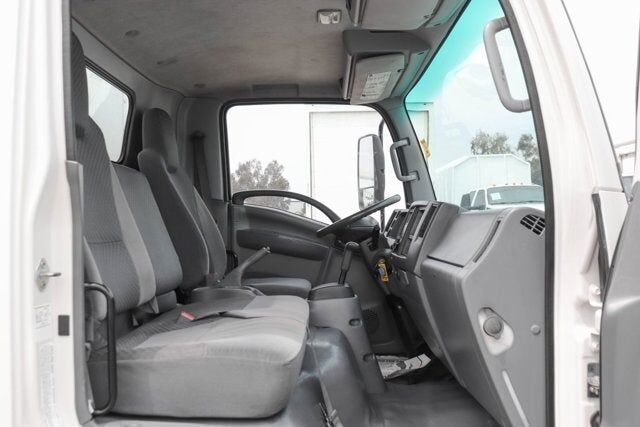

Tricot and jersey knit combination cloth covered reclining highback driver seat with single two occupant fold down passenger seat

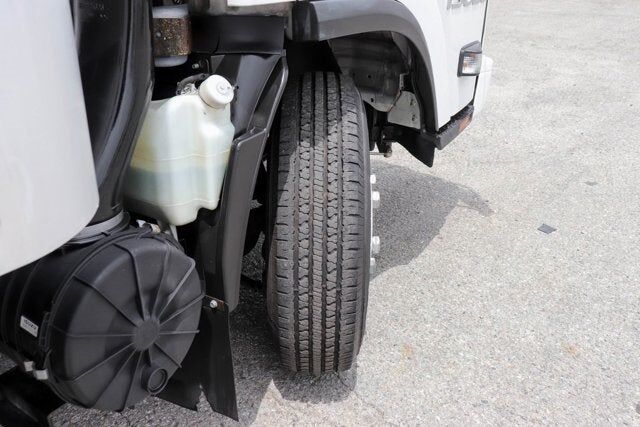

Air Cleaner Dry Paper single element (Donaldson brand). Air cleaner canister standard with air restriction gauge.
Alternator 110 AMP with integral regulator
Battery Dual 12-V maintenance free 750 CCA each

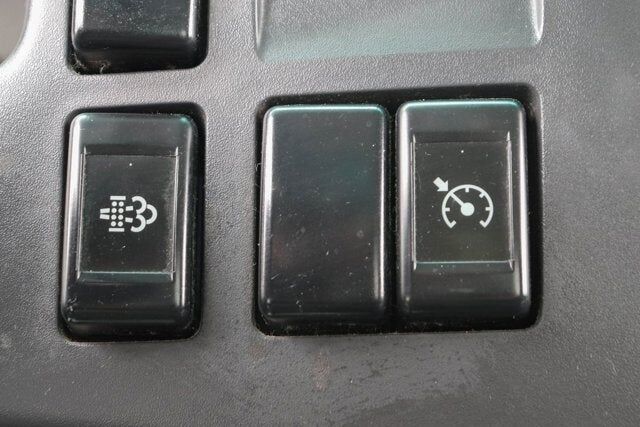

Exhaust Brake vacuum operated
Exhaust System Single horizontal with DPF (Diesel Particulate Filter)
Front Axle Reverse Elliot "I"-beam rated at 6830 lbs. (3098 kg). Includes integral hydraulic power steering. Ratio 18.8-20.9:1
Front GAWR 5360 lbs (2431 kg) capacity
Front Suspension 8440 lbs. (3828 kg) capacity. Semi-elliptical tapered leaf springs. Includes shock absorbers and stabilizer bar.

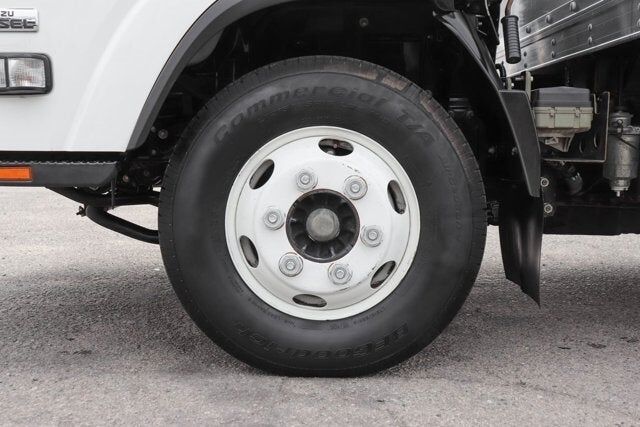

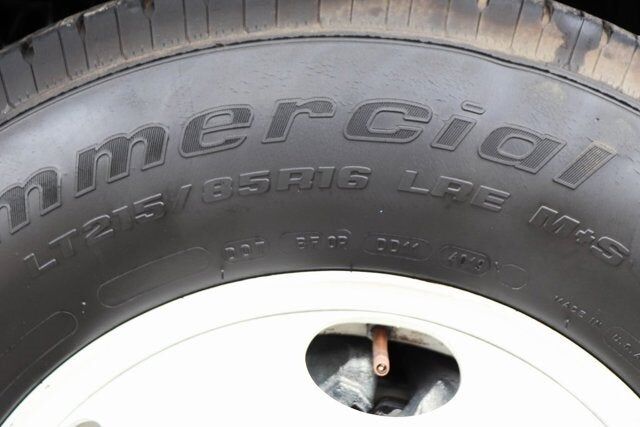

Front tires 215/85R16E (10 ply) LRR (low rolling resistance) tubeless steel belted radial all season
Front Wheels 16" x 6" 6-hole disc painted white
Fuel Tank 25-gallon (94.6L) rectangular fuel tank. Mounted between frame rail through the rail fuel fill. Fuel water separator with dash mounted warning light.

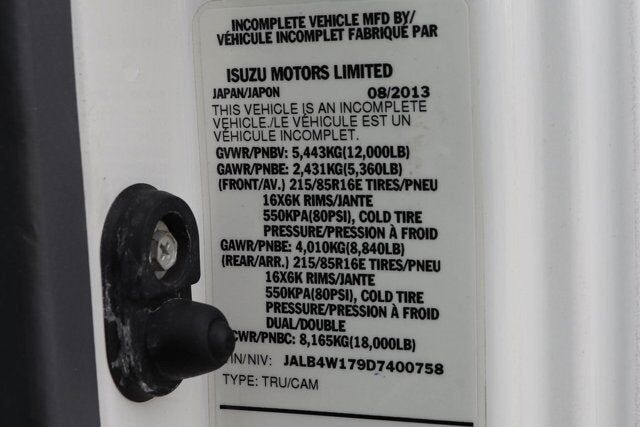

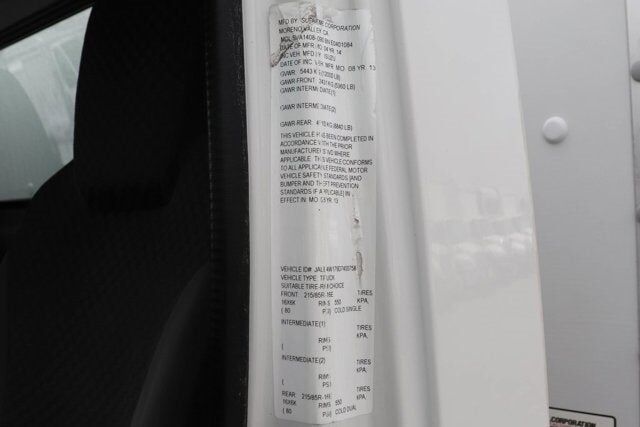

GVWR 12000 lbs (5443 kg) capacity
Rear Axle Ratio 5.125:1
Rear Axle R050 full-floating single-speed 11020 lbs. (4999 kg) capacity with oil lubricated rear wheel bearings
Rear GAWR 8840 lbs capacity
Rear Suspension 9880 lbs. (4481 kg) capacity. Semi-elliptical main and auxiliary multi-leaf springs. Includes shock absorbers.

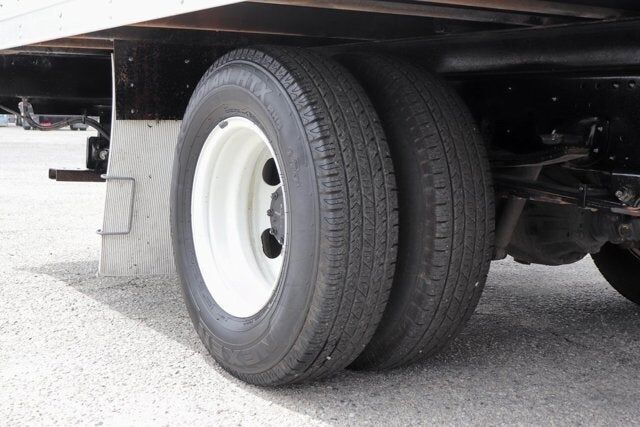

Rear tires 215/85R16E (10 ply) LRR (low rolling resistance) tubeless steel belted radial all season
Rear wheel drive
Rear Wheels 16" x 6" 6-hole disc painted white
Truck Application
Wheelbase 110" (279.4 cm) includes ladder type channel frame. Full C section frame flaired forward of 3rd crossmember. 29.5 inches (74.9 cm) wide. Yield strength 44000 psi; section modulus 6.07 cu.in. and RBM 267080 lb/ft/in per rail
4 channel anti-lock brake system
EBD (Electronic Brake Distribution)

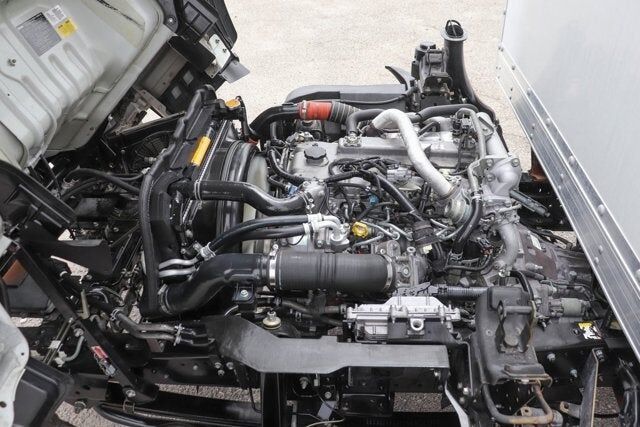

4JJ1-TC DIESEL ENGINE 183 CID (3.0L) 150 HP AT 2800 RPM 282 LB FT GROSS TORQUE AT 1600-2800 RPM. 4 CYLINDER 16 VALVE FOUR CYCLE CHAIN-DRIVEN DUAL OVERHEAD CAMSHAFT VALVE TRAIN A CAST IRON CYLINDER BLOCK AND A CAST ALUMINUM CYLINDER HEAD. TURBOCHARGED INTER-COOLED WATER COOLED EGR DIRECT INJECTION ELECTRONICALLY CONTROLLED COMMON RAIL FUEL SYSTEM AND ENGINE CRUISE CONTROL.
Oil level check switch and light. Engine warning system with audible warning for low oil pressure
high coolant temperature
and a protection system that will reduce fueling if excessive coolant temperature is detected. (STD)
