Option & Equipment
GVWR 19500 lbs. (8845 kg) capacity - GVWR. Maximum GCWR 26000 lb. Note: Trucks that are used primarily to tow a trailer may be liable to Federal Excise Tax (FET). A New Law (Highway Transportation Bill HR3) was passed on August 10 2005 - Check with IRS for guidelines
Air cleaner dry type
Cooling anti-freeze protection temperature - -40 degrees F (-40 degrees C)
75 mph (120 kph) speed governor - controlled by the speed rating of the tires ordered
Alternator AD244 Delco-Remy 150-amp maximum
Transfer case New Venture Gear - model NV273 two-speed electrically actuated IP mounted switch includes shield
Front axle 8000 lbs. (3629 kg) capacity - solid drive axle. Up to 45 degree turn angle includes 4 piston brake apply calipers and manual locking hubs
Front suspension tapered leaf 8000 lbs. (3629 kg) capacity
Front shock absorber diameter 1.375" (35mm)
Front stabilizer bar Solid bar style 1.5" (38mm)

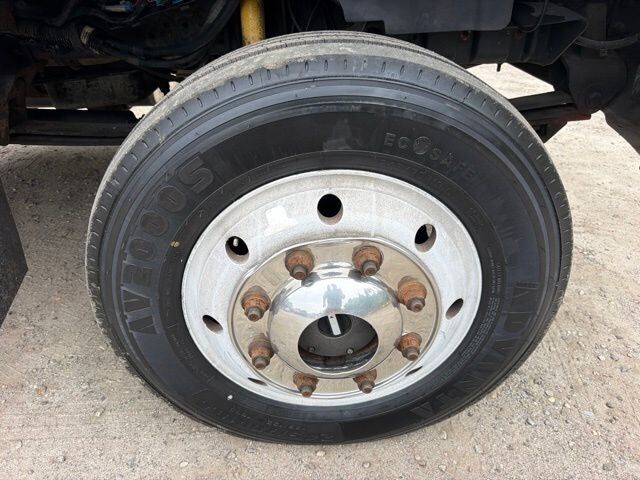

Front wheels 19.5" x 6.75" (49.5 cm x 17.1 cm) steel disc - 8-hole. 10000 lbs. (4536 kg) capacity (Requires Q83 steel rear wheel and XTY or XNC front tires)
Front tire size 245/70R19.5G - 9090 lbs. (4123 kg) capacity (Requires KYR 65 mph or KYW 75 mph road speed governor Q82 or RPM front wheels. With R4A Goodyear tire requires R3H highway traction tread)
Front tire manufacturer code Goodyear (Requires S4A Goodyear)
Front tread highway traction
Rear axle single speed Dana S110 13500 lbs. (6123 kg) capacity - full floating Includes 2-piston brake applied calipers
Four-wheel drive
Rear axle ratio 5.13:1 (Requires HD2 single speed rear axle)
Rear limited slip differential
Rear suspension multi-leaf 15000 lbs. (6804 kg) capacity
Rear suspension brackets are riveted to frame in lieu of bolts
Rear shock absorber not desired (N/A with tapered leaf springs)

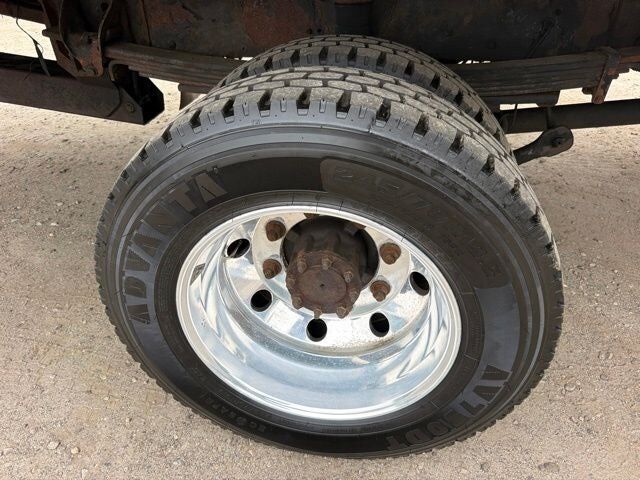

Rear wheels 19.5" x 6.75" (49.5 cm x 17.1 cm) steel disc - 8-hole 20000 lbs. (9072 kg) capacity (Requires Q82 front wheels and YTY or YNC rear tires)
Rear tire size 245/70R19.5G - 17500 lbs. (7938 kg) capacity (Requires KYR 65 mph or KYW 75 mph road speed governor and Q83 or RPW front wheels. With S4A Goodyear tire requires S3H highway traction tread)
Rear tire manufacturer code Goodyear (Requires R4A Goodyear)
Rear tread highway traction
Wheelbase 152" (386.1 cm) - with 84" (213.4 cm) CA and 146" (370.8 cm) CE. Includes a 8mm 80000 psi (551600 kPa) yield strength steel frame RBM: 610400 Section Modulus 7.63
Frame 8mm - 80000 psi (551600 kPa) yield strength steel frame RBM: 824800 Section Modulus 10.31
Fuel sender assembly. Robust fuel pump
Tethered fuel cap
Steering power - ZF variable ratio power
Brakes front power 4-wheel disc 4 channel ABS 4-piston - (See front axle options more more details)
Brakes rear power 4-wheel disc 4 channel ABS 2-piston - (See rear axle options for more detail)
Parking brake rear in-wheel park brake - hand lever operated
Paint scheme solid upper color Summit White
Paint scheme solid lower color Summit White
Exterior roof drip moldings
Bumper front steel 96" (243.8 cm) wide - styled to minimized wall to wall turn diameter painted argent
Steps under cab doors
Front mud flaps
Integral grille and fenders - The grille is the same color as hood with single halogen headlamps.
Roof marker lamps
Daytime running lamps
Windows Solar-Ray tinted. Light tinted windshield and side window glass with light transmissity of 70%
Mirrors manual 102" (259 cm) wide load integral arm integral convex mirror - black molded composite 12" x 7" (30.5 cm x 17.8 cm) with 6" x 7" (15.2 cm x 17.8 cm) convex section
Windshield wipers 2-speed and intermittent with pulse washers
Provisions for mounting front license plate
Positive door stops

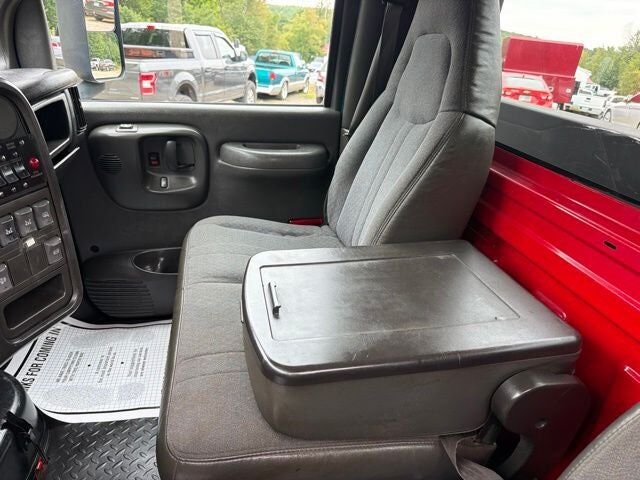

Seat driver high-back bucket fixed height manual adjuster - storage in the seat riser with a small lip at the front to stop contents from sliding out
Seat passenger high-back bucket fixed height manual back angle adjuster - storage in the seat riser with a small lip at the front to stop contents from sliding out
Seat trim vinyl Very Dark Pewter
Interior trim Very Dark Pewter (Requires 69V Very Dark Pewter vinyl or 69C Very Dark Pewter cloth)
Trim console - located next to driver's seat and two cupholder
Molded vinyl floor covering

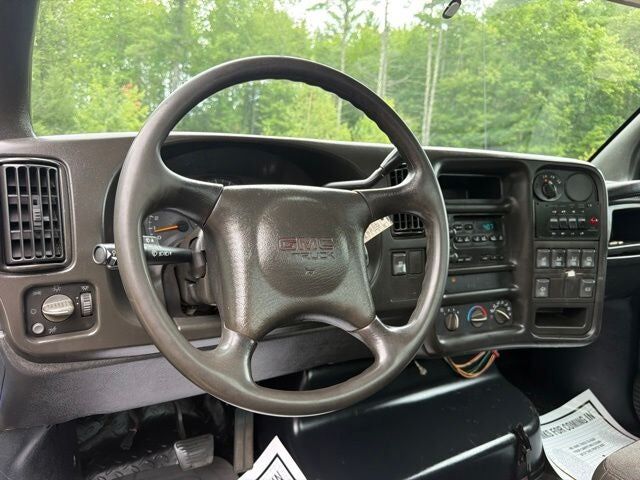

Steering wheel 16"
Two sided single common key for doors and ignition
Headlamp warning buzzer
Warning tone key-in-ignition
Tachometer

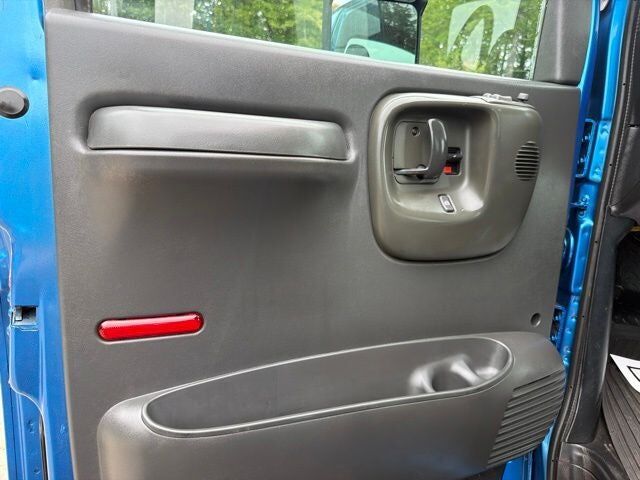

Vinyl door trim panels - with storage pocket on front doors beverage holders and reflector on all doors
Stepwell storage areas at each door front and rear. Includes storage cover.
Cloth headliner
Sunshades passenger side and driver side cloth-covered
Coat hooks (2) located on cab back panel
Dome lamp switches included on driver and passenger doors

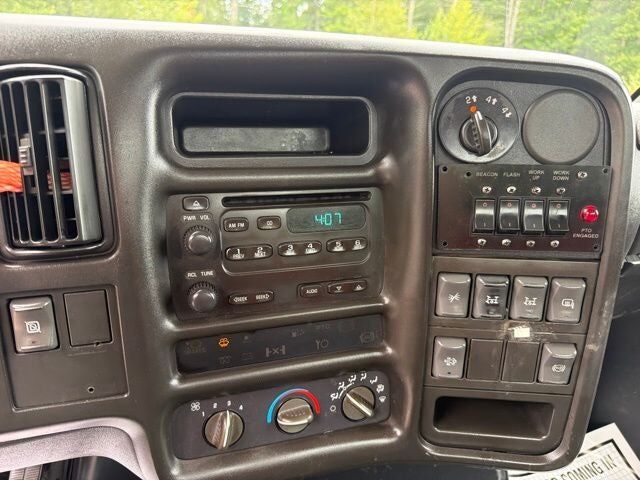

Provisions for stereo - Includes AM/FM antenna lead wiring for speakers and separate door chime module (N/A with ZQ2 power convenience option)
Air conditioning not desired - this option should be ordered only when a customer does not require air conditioning
Powerpoints - two in-cab power sources (in addition to optional cigarette lighter) for electrical plug-in accessories
Underhood bodybuilder connections accessory power supply - Provides 12V power supply from the battery with two separate 30 amp fused circuits
4-wheel disc 4-channel ABS
Air bags Supplemental Inflatable Restraints not included. This vehicle does not include any air bags
Seat belt warning indicator

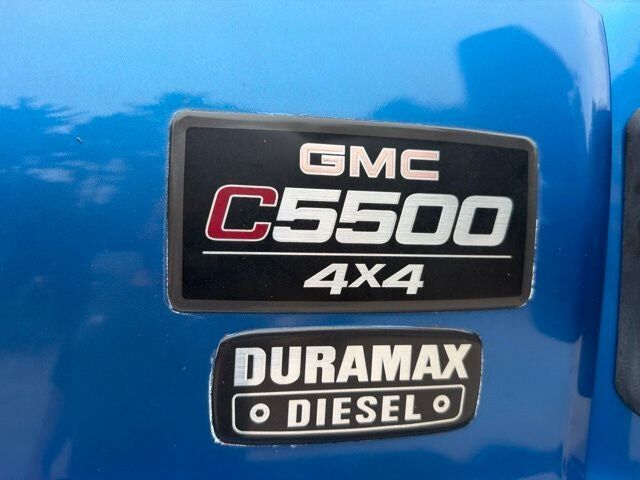

DURAMAX DIESEL 6.6L 330 HP (246 KW) @ 3000 RPM 620 LB-FT TORQUE (840 N-M) @ 1600 RPM
(Includes KPJ Engine shutdown) Oil Level Sensor: Warning sensor for low oil levels
